Superior Processing Performance

Provides AI computing power up to 2TOPS through CPU core fusion, enabling fast integration with all major AI ecosystems.

  1. Octa-core

    RISC-V AI CPU

  2. 50KDMIPS

    CPU computing power

  3. 2.0 TOPS

    AI computing power

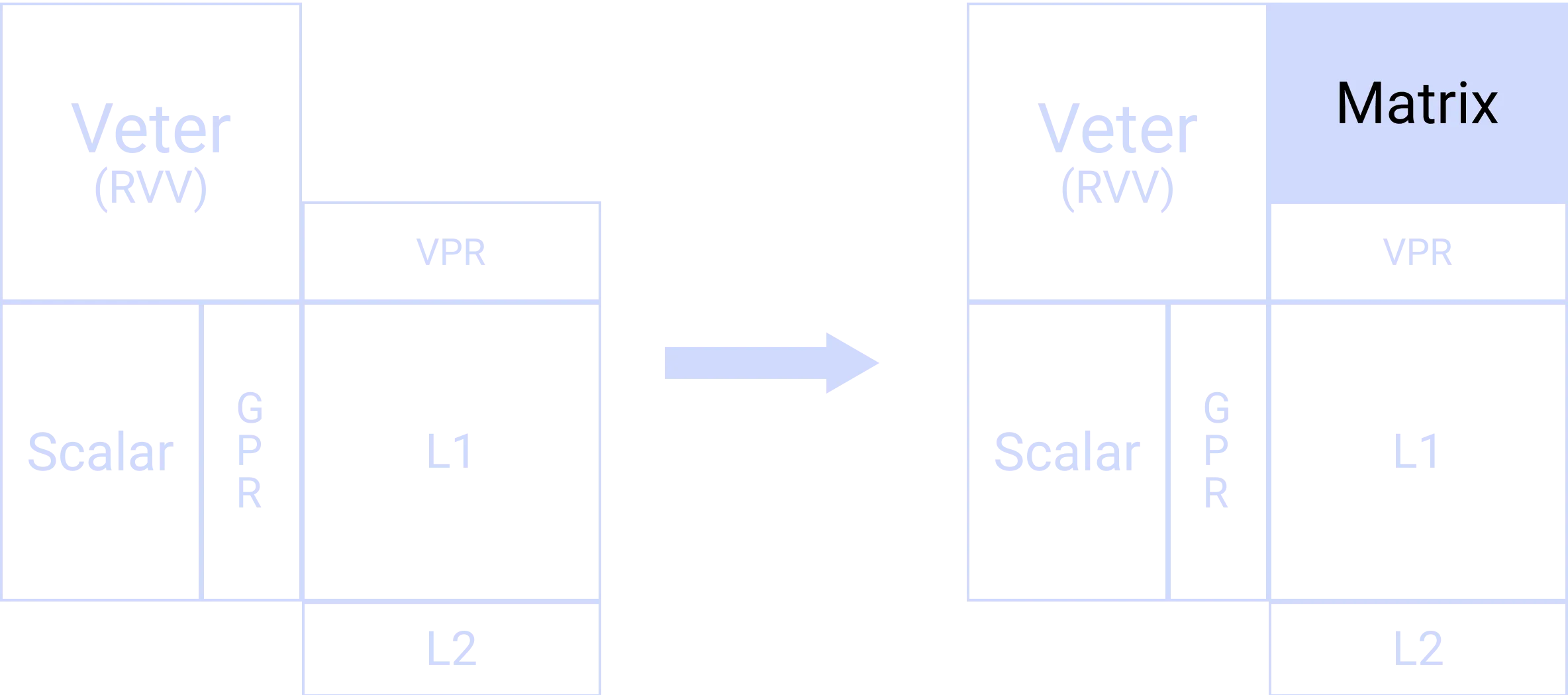

X60™ Intelligent Computing Core

Based on RISC-V, it extends AI instructions for a CPU with integrated AI power, compatible with all AI models

X60™ Intelligent Computing Core

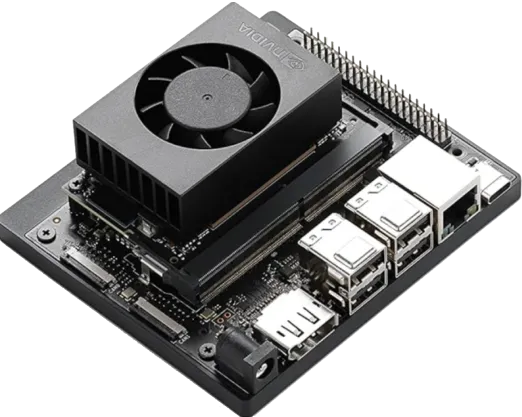

Compatible with Jetson NANO
Baseboard

Compatible with Jetson NANO Baseboard

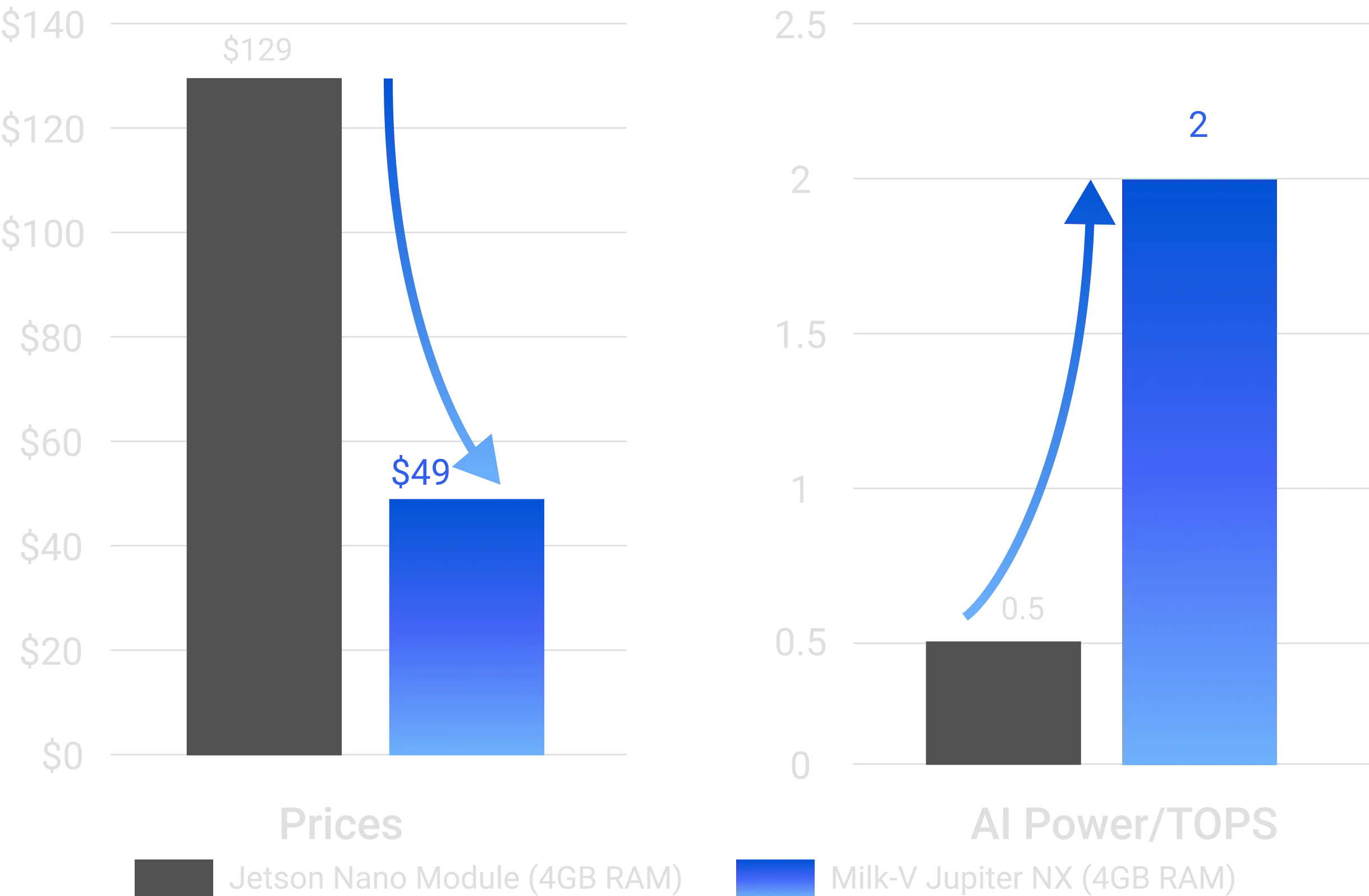

Half the Price,
4 Times the AI Performance

Half the Price, 4 Times the AI Performance

RVV1.0 & RVA22

PCIe Gen2

1x 2-lane + 1x 1-lane

All in Jupiter NX

WIFI6/BT5.2 Onboard; Optional eMMC Onboard

All in Jupiter NX

Smooth Desktop Experience

Support optimised Ubuntu / Fedora OS

Ubuntu / Fedora OSUbuntu / Fedora OS

Meets industrial-grade standards

Stable and reliable operation in temperatures from -40°C to 85°C

  • Supports hardware acceleration
  • Supports mainstream frameworks
OpenGL ES 1.1/3.2EGL1.5Vulkan 1.3
OpenCL 3.0

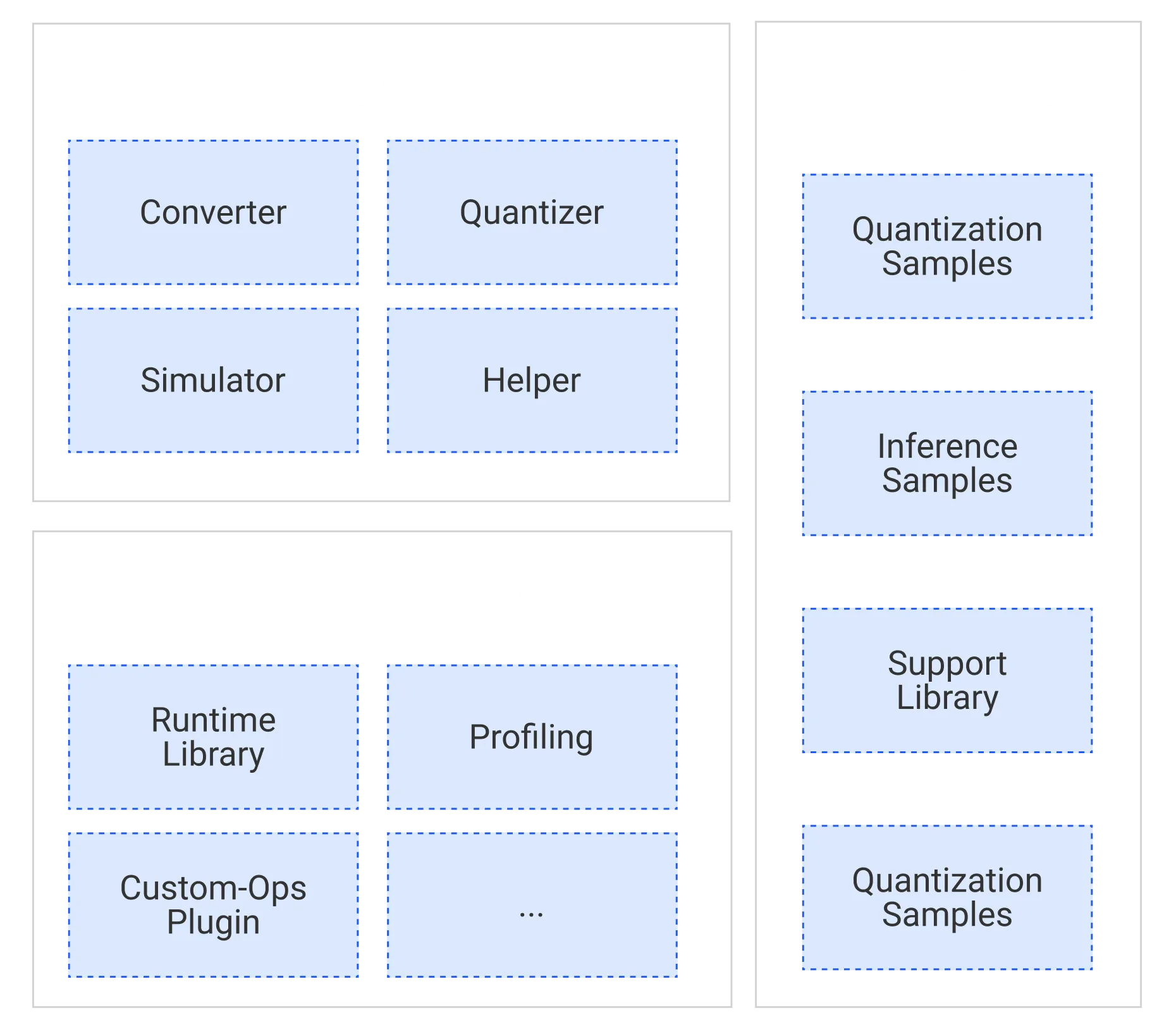

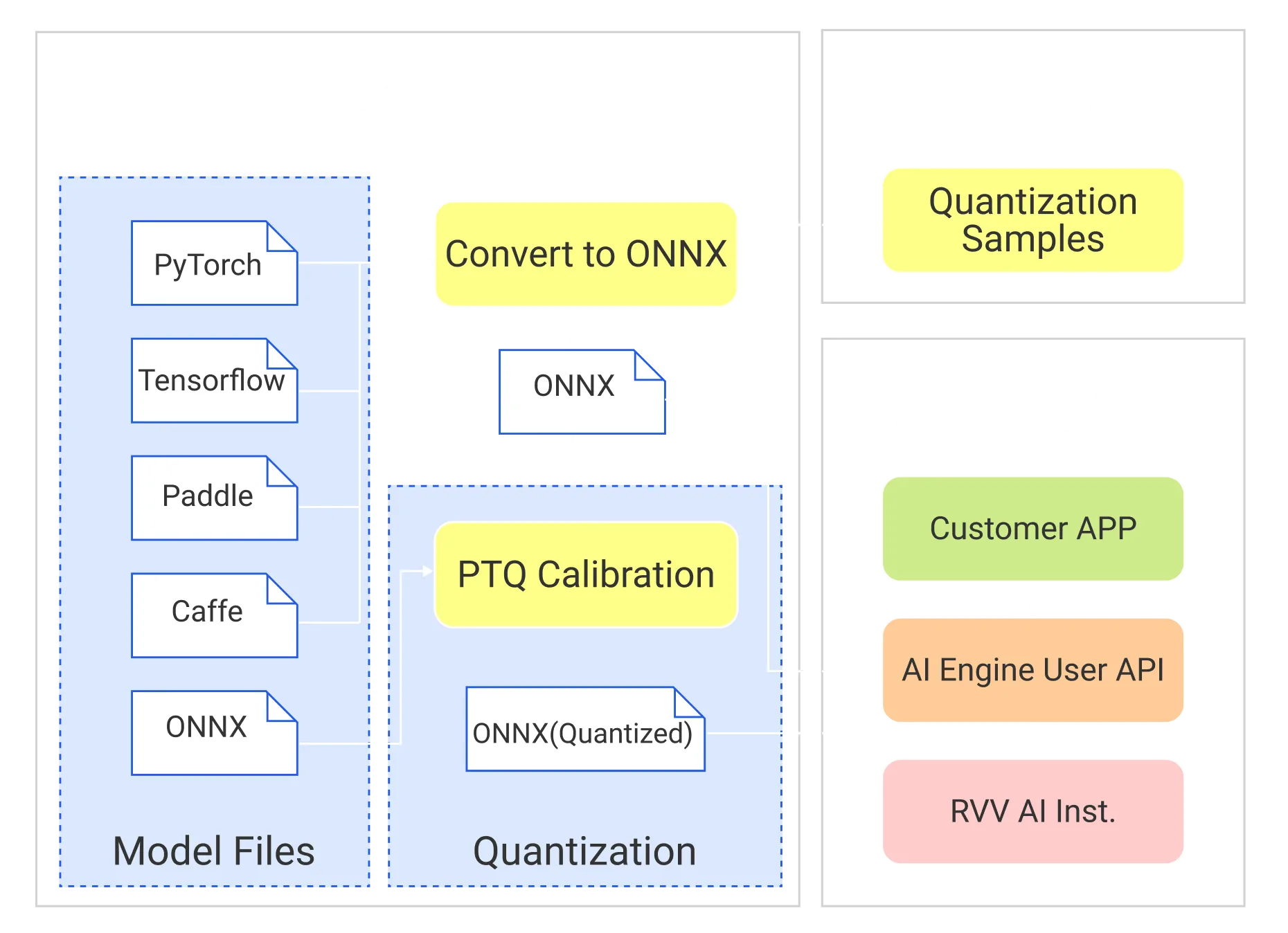

Dedicated AI algorithm deployment tool — Spacengine™

Spacengine™ utilizes SpacemiT's advanced AI instructions and quantization technology to deeply optimize the self-developed RISC-V series chips, significantly boosting the inference performance of common algorithm models on Milk-V Jupiter NX.

chatchat

Meets industrial-grade standards

Stable and reliable operation in temperatures from -40°C to 85°C

-40°C ~ 85°C

技术规格

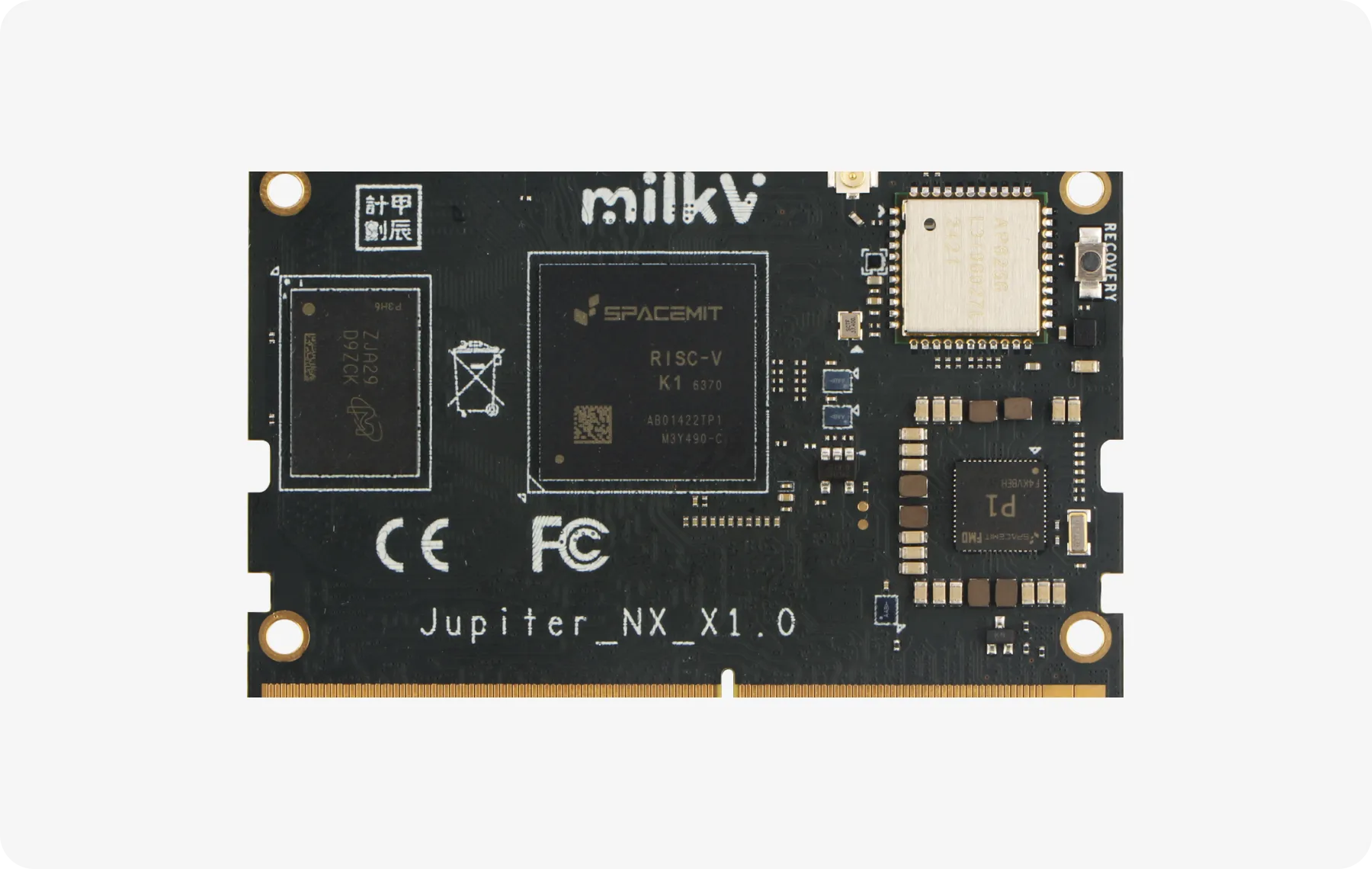

Milk-V Jupiter NX is an octa-core AI system-on-module featuring SpacemiT M1/K1 SoC, onboard WiFi/BT, and eMMC. It complies with RVA22 standards, supports RVV1.0, and is compatible with NANO/Xavier NX baseboards, making it the best replacement for NANO.

硬件设施

SoC

SPACEMIT K1/M1, Octa-core X60™(RV64GCVB), RVA22, RVV1.0

AI-Power

2.0TOPS

RAM

2GB / 4GB / 8GB / 16GB LPDDR4X

GPU

IMG BXE-2-32@819MHz, 32KB SLC

  • OpenGL ES 1.1/3.2
  • EGL1.5
  • 2.OpenCL 3.0
  • Vulkan 1.3
Multimedia

H.265/H.264/VP8/VP9/MPEG4/MPEG2 decoder 4K@60fps

H.265/H.264/VP8/VP9 encoder 4K@30fps

Support simultaneously processing

  • encoding 1080P@60fps
  • decoding 1080P@60fps

Support simultaneously processing

  • H264/H265 encoding 1080P@30fps
  • H264/H265 decoding 4K@30fps
Storage

1x SPI Flash for boot

1x Optional eMMC Onboard

1x MMC Interface

Ethernet

2x Gigabit Ethernet PHY

PCIe

1x 2-lane + 2 x1-lane PCIe Gen2

USB

1x USB3 (Combo with 1-lane PCIe Gen2)

1x USB2 OTG

1x USB2 HOST

Wireless

WIFI6 / BT5.2 Onboard

Video Output

1x HDMI Interface, up to 1920x1440@60FPS

1x MIPI DSI 4-lane

Video Input

1x MIPI CSI 4-lane

2x MIPI CSI 2-lane

Resource

Up to 55x GPIO available

Up to 2x I2S

Up to 3x UART

Up to 2x I2C

Up to 1x SPI

Up to 3x PWM
