Milk-V Pioneer

Make native RISC-V development possible

Buy Now

Powered by SOPHON SG2042

64 Core RISC-V CPU

Main Frequency

L1 Cache

L2 Cache

L3 Cache

Typical power consumption

DDR

PCI-E

2GHz

I:64KB and D:64KB

1MB/Cluster

64MB System Cache

120W

4 channel 3200Hz ECC RDIMM/UDIMM/SODIMM

2 x 16x Gen4 with CCIX support

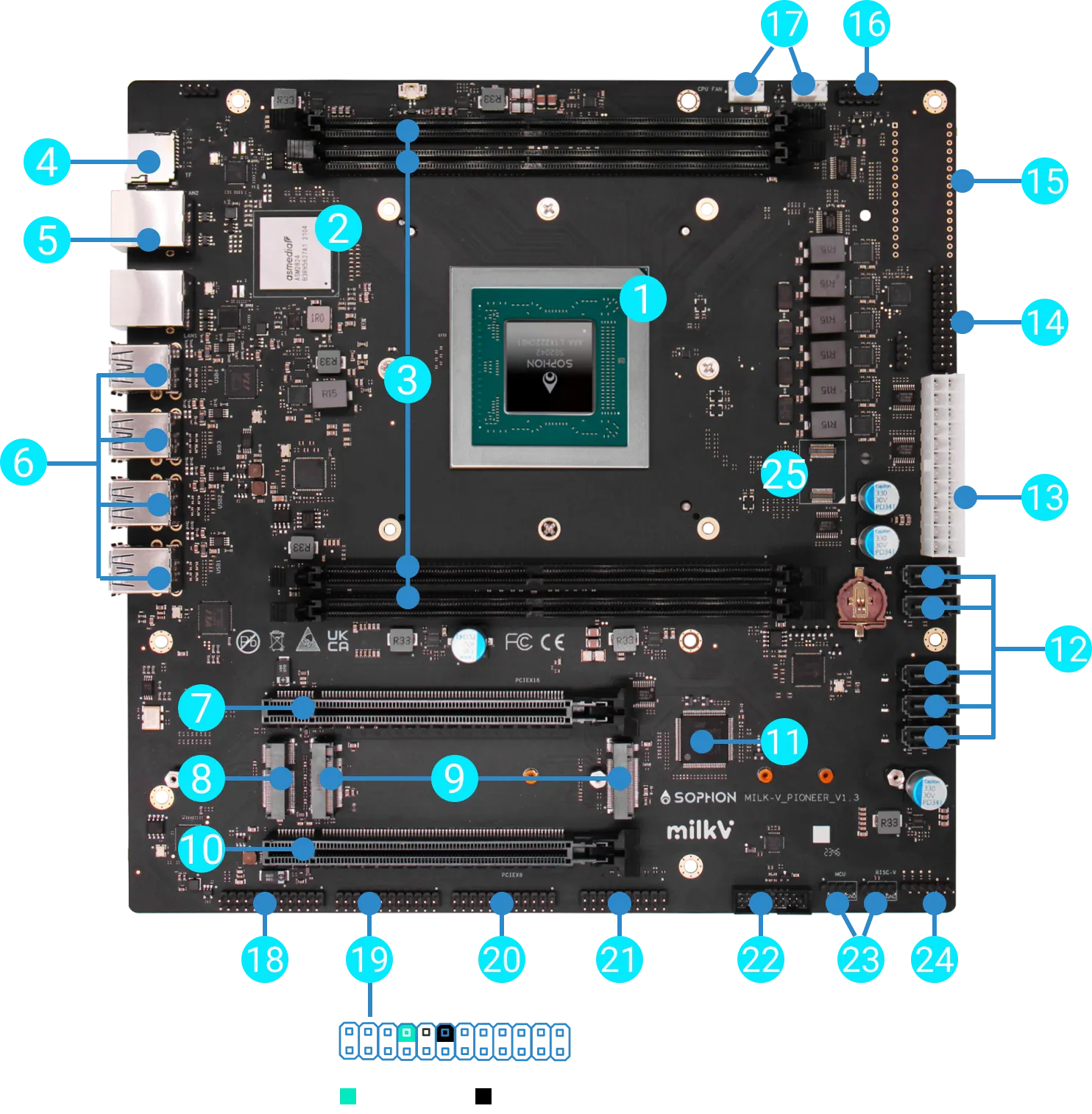

Pioneer Board

Pioneer Board

  • 1SOPHON SG2042

    2PCIe Switch(ASM2824)

    3DDR4 DIMM Slot

    4SD Card Slot

    52.5GbE Ethernet Port

    6USB3

    7PCIe 4.0 x16

    8M.2 E Key (PCIe 3.0 x1 + USB 2.0)

    9M.2 M Key (PCIe 3.0 x4)

  • 10PCIe 4.0 x8

    11MCU(for Power-up control)

    12SATA3 6Gbps

    1324P ATX Power Supply Connector

    14LPC

    15LPC

    16Pin for Start, Power off, etc.

    17CPU FAN Connectors

    18GPIO

  • 19SCP UART

    20SPIF

    21JTAG

    22USB

    23SG2042 & MCU Debug

    24MCU Programming and Debugging Pin

    25eMMC Module Connector

  • equipped with

    AMD R5 230

    Graphic Card

  • equipped with

    Intel X540-T2

    Network Card

  • equipped with

    MSI A350 350W

    Power

  • equipped with

    128GB 3200MHz

    DDR4

  • equipped with

    1TB

    PCIe 3.0 SSD

  • equipped with

    RGB

    Cooler
SupportSupportSupportSupportSupportSupportSupport
Workstation
SWITCH
NAS
Tech Specs

Milk-V Pioneer is a developer motherboard based on SOPHON SG2042 in a standard mATX form factor. With PC-like interfaces and PC industrial compability, Pioneer provides native RISC-V development environment and RISC-V desktop experience. It is the first choice for RISC-V developers and hardware pioneers to experience the cutting edge technology of RISC-V. Embrace RISC-V, embrace the future.

Hardware

Pioneer Board

- SOPHGO SG2042 Chip (64-core C920, RVV 0.71)

- 64 Core RISC-V CPU up to 2GHz

- 4x DDR4 DIMM slots up to 128GB ram support

- 1x PCIe x16 Slot (PCIe 4.0 x16)

- 1x PCIe x16 Slot (PCIe 4.0 x8)

- 5x SATA

- 8x USB3

- 2x M.2 M KEY (PCIe 3.0 x4)

- 1x M.2 E KEY (PCIe 3.0 x1 + USB 2.0)

- 2x RJ45 2.5G

- 1x USB Header for front panel (2x USB 3.0)

- 1x misc header for front panel power, reset, LED etc

- 1x eMMC module connector

- 1x micro USB debug console

- 1x micro SD card for recovery or OS loading

- 1x SPI flash for BIOS

- 1x standard 24-pin ATX power connector

Pioneer Box

Pioneer Box is a complete ready-to-use RISC-V PC with the following:

- 1x Pioneer Board

- 128GB 3200 DDR4

- 1x 1TB PCIe 3.0 SSD

- 1x Intel X540-T2 Network Card with 2x 10Gbps RJ45 ports

- 1x AMD R5 230 Graphic Card with HDMI, VGA and DVI

- 1x MSI A350 350W Power Apply

- 1x Cooler with PWM Fan up to 2300 RPM supporting up to 160W D-TDP

- White slim PC enclosure with handle

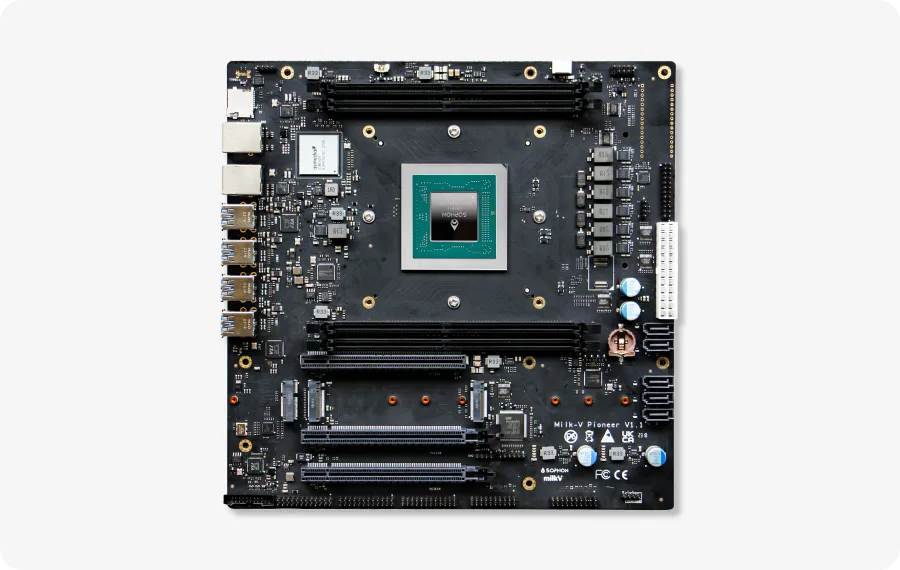

Buy Milk-V Pioneer
