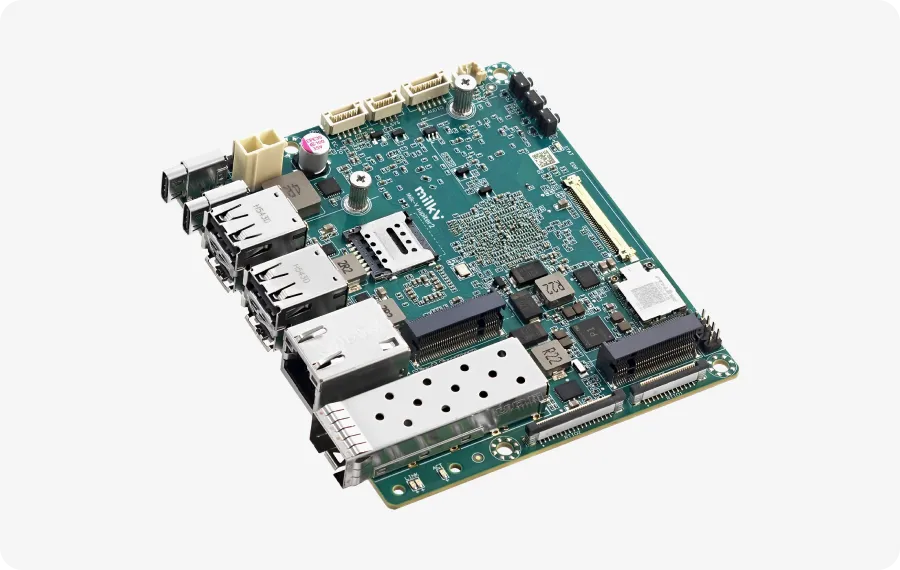

Milk-V Jupiter2
- RVA23‑Ready
- RVV 1.0
- 1024‑bitVector Acceleration
The First RVA23-Compliant RISC-V SBC
今すぐ購入High-Performance CPU
8-Core X100™ CPU @ 2.4GHz
- 64-bit RISC-V AI processor cores
- 130 KDMIPS class CPU performance
- Built for desktop-class computing and heavy edge workloads
On-Device AI Acceleration
8-Core A100™ AI CPU
- Up to 60 TOPS
- Dedicated TCM + DMA acceleration channels
- Supports INT4 / INT8 / FP8 / INT16 / FP16 / BF16 precision
Integrated 3D Graphics Engine
- IMG BXM-4-64-MC1
RVA23 + RVV 1.0
Up to 1024-bit RVV 1.0 vector processing
- Vector computing made for AI & multimedia
Comprehensive Hardware Virtualization
- Supports RV Hypervisor 1.0, AIA, and RV IOMMU extensions
- Provides full hardware virtualization for CPU, memory, interrupts, and I/O
Powerful Storage Expansion
LPDDR5
- Up to 32GB
- Memory bus width: 64-bit (dual-channel, 32-bit per channel)
- Data rate: up to 6400 MT/s
Onboard UFS (up to 256GB)
- Faster boot, snappier apps, improved reliability
M.2 M Key 2280 (PCIe Gen3 x4)
- High-speed NVMe expansion for local knowledge bases, caching, datasets, and NAS/edge storage

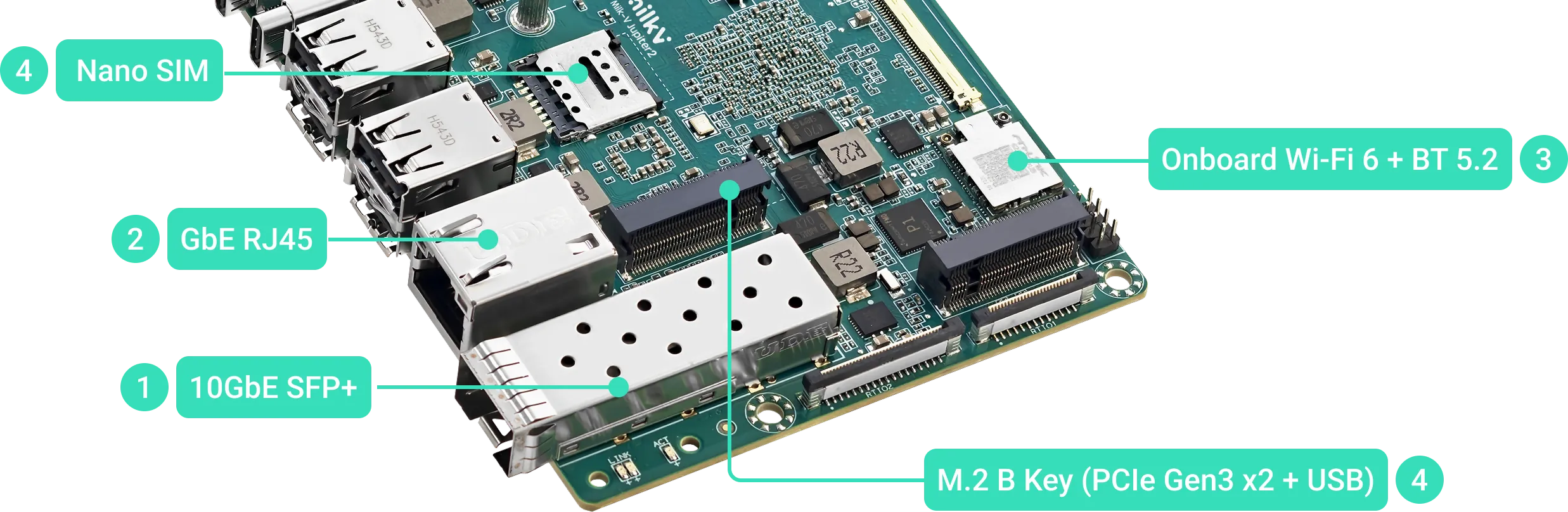

Comprehensive Hardware Virtualization
- 1High-speed uplink/aggregation/storage networking
- 2Legacy compatibility and dedicated management link
- 3Dual-band, dual-antenna for wireless deployment and edge nodes
- 44G/5G modules and connectivity expansion for mobile/distributed scenarios
Dual Display Outputs
- USB Type-C (DP Alt Mode): up to 4K@60Hz
- Embedded DisplayPort (eDP): up to 2.5K@90Hz
High-Frame-Rate Video Codec
Built for capture / transcoding, low-latency streaming, and edge video analytics
- Decode: H.265 / H.264 / VP9 up to 4K@120fps
- Encode: H.265 / H.264 up to 4K@60fps
Real-Time & Industrial Expansion
Dual-core RT24™ 64-bit RISC-V Real-Time Processor
- 1Power‑off time keeping
- 2Support UART, I2C, I2S, CAN-FD, PWM, GPIOs, etc
- 3Convenient for both prototyping and production designs
Software Support
- Bianbu 3.0, Ubuntu 26.04, OpenHarmony 6.0, OpenKylin 2.0, deepin 25, Fedora
テクニカルスペック
Powered by the Spacemit K3 (RVA23), this next-gen RISC-V platform features an 8-core X100™ CPU (up to 2.4GHz) with up to 60 TOPS AI performance and RVV 1.0 up to 1024-bit vector acceleration. It offers up to 32GB LPDDR5, onboard UFS (up to 256GB), and an M.2 NVMe slot (PCIe Gen3 x4).
Connectivity includes 10GbE SFP+, GbE RJ45, and Wi-Fi 6/BT 5.2, plus M.2 B Key + Nano SIM for 4G/5G expansion. With USB-C DP Alt, eDP, and RT I/O expansion for EtherCAT/CAN-FD, it’s ideal for RISC-V AI development and high-performance edge deployments.
ハードウェア
| SoC | SPACEMIT K3（RVA23） |
CPU | 8-core A100™
|
GPU | IMG BXM-4-64-MC1
|
AI Performance | 8-core A100™
|
RAM | LPDDR5
|
Codec | Video Decoder:
Video Encoder:
|
Storage | 1x Onboard UFS, Up to 256GB 1x M.2 M Key 2280 Slot (PCIe Gen3 x4) for NVMe SSD |
Display | 1x USB Type-C (DisplayPort Alt Mode), Up to 4K@60Hz 1x Embedded DisplayPort (eDP), Up to 2.5K@90Hz |
Networking | 1x Onboard WiFi 6 + BT 5.2 1x GbE RJ45 Port 1x 10 GbE SFP+ Port, Supports 10G BASE-R / BASE-X, QinQ, MSI-X, WOL, and clustering. 1x Nano SIM Slot 1x M.2 B Key Slot (PCIe Gen3 ×2 + USB), Supports 2242 / 3042 cards. |
Audio | Onboard Codec 1x Audio Connector |
USB | 2x USB 3.2 Gen1 Type-C Ports 4x USB 2.0 Type-A Ports |
Other | 1x RTC Battery Connector 1x FAN Connector 2x RT I/O Expansion Connector Supporting expansion modules for EtherCAT, CAN-FD and other real-time interfaces. ... |
Operating System | Bianbu 3.0, Ubuntu 26.04, OpenHarmony 6.0, OpenKylin, Deepin, Fedora |
Power | USB Type-C (USB-PD 65W) or ATX 2-pin (12V Input) |
Dimension | 100 x 86 mm |
Buy Milk-V JUPITER2
