Milk-V Jupiter2 Dev Kit

  1. RVA23‑Ready
  2. RVV 1.0
  3. 1024‑bitVector Acceleration

The First RVA23-Compliant RISC-V Dev Kit

今すぐ購入

High-Performance CPU
8-Core X100™ CPU @ 2.4GHz

  • 64-bit RISC-V AI processor cores
  • 130 KDMIPS class CPU performance
  • Built for desktop-class computing and heavy edge workloads

On-Device AI Acceleration
8-Core A100™ AI CPU

  • Up to 60 TOPS
  • Dedicated TCM + DMA acceleration channels
  • Supports INT4 / INT8 / FP8 / INT16 / FP16 / BF16 precision

Integrated 3D Graphics Engine

  • IMG BXM-4-64-MC1
IMG BXM-4-64-MC1

RVA23 + RVV 1.0

Up to 1024-bit RVV 1.0 vector processing

  • Vector computing made for AI & multimedia

Comprehensive Hardware Virtualization

  • Supports RV Hypervisor 1.0, AIA, and RV IOMMU extensions
  • Provides full hardware virtualization for CPU, memory, interrupts, and I/O

High-Speed Storage

High bandwidth, low latency, meeting the demands of large-scale data and model loading

LPDDR5

  • Up to 32GB
  • Memory bus width: 64-bit (dual-channel, 32-bit per channel)
  • Data rate: up to 6400 MT/s

Onboard UFS

  • up to 256GB
Onboard UFS

NVMe SSD

  • M.2 M Key 2230 Slot
  • M.2 M Key 2280 Slot
SSD

High-Frame-Rate Video Codec

Built for capture/transcoding, low-latency streaming, and edge video analytics

  • Decode: H.265 / H.264 / VP9 up to 4K@120fps
  • Encode: H.265 / H.264 up to 4K@60fps
AI Video Codec

Peripheral Expansion

  • Support UART, I2C, I2S, CAN, PWM, GPIOs, etc
  • PCIe Gen3
  • USB 3.0 / USB 2.0

Comprehensive Connectivity

Interface

Software Support

  • Bianbu 3.0, Ubuntu 26.04, OpenHarmony 6.0, OpenKylin 2.0, deepin 25, Fedora
SupportSupportSupportSupportSupportSupport

Package List

  • Radxa C200
  • Milk-V Jupiter2 NX

Jupiter NX VS Jupiter2 NX

Milk-V Jupiter NX

Milk-V Jupiter2 NX

Jupiter NX VS Jupiter2 NX

テクニカルスペック

Jupiter2 NX Development Kit pairs the Jupiter2 NX with the Radxa C200, delivering a production-ready RISC-V AI platform. Built around the SpacemiT K3 (RVA23) SoC, it features an 8-core X100™ CPU and delivers 60 TOPS of AI performance with 1024-bit RVV 1.0 vector acceleration.
The kit is equipped with up to 32GB LPDDR5 memory, onboard UFS storage, and versatile M.2 expansion slots. Offering a comprehensive set of I/O including high-speed USB, networking, display outputs, and industrial interfaces, it provides a complete foundation for developing and deploying edge AI, robotics, and high-performance computing solutions.

ハードウェア

SoC

SPACEMIT K3（RVA23）

CPU

8-core A100™

  • Up to 2.4 GHz
  • 64-bit RISC-V AI Processor Cores
  • Delivering 130 KDMIPS
  • X100™ is a quad-issue, out-of-order high-performance core
  • 8MB shared L2 cache per 8-core cluster

GPU

IMG BXM-4-64-MC1

  • OpenGL ES1.1 / ES2.0 / ES3.2
  • OpenCL 3.0
  • Vulkan 1.3

AI Performance

8-core A100™

  • Up to 60 TOPS
  • Up to 1024-bit RVV 1.0 vector processing
  • Dedicated TCM and DMA acceleration channels provided
  • Supports INT4 / INT8 / FP8 / INT16 / FP16 / BF16 precision

RAM

LPDDR5

  • Up to 32GB
  • Memory bus width: 32-bit (dual-channel, 16-bit per channel)
  • Data rate: up to 6400 MT/s

Codec

Video Decoder:

  • H.265 / H.264 / VP9 up to 4K@120fps

Video Encoder:

  • H.265 / H.264 up to 4K@60fps

Storage

1x Onboard UFS, Up to 256GB

1x microSD Card Slot

1x M.2 M Key 2280 Slot

1x M.2 M Key 2230 Slot

Networking

1x GbE RJ45 Port (PoE support with optional PoE module)

1x M.2 E Key 2230 Slot

Display

1x DP

Camera

2x MIPI CSI

USB

1× USB Type-C Port

4x USB 3.2 Gen1 Type-A Ports

Other

1x 40-Pin GPIO Header

1x 12-Pin Button Header

1x 4-Pin PoE Header

1x 4-Pin PWM Fan Connector

1x 4-Pin CAN Bus Header

1x 2-Pin RTC Battery Connector

Power

DC5525 Power Jack (9-20V Input)

Dimension

100mm x 79mm

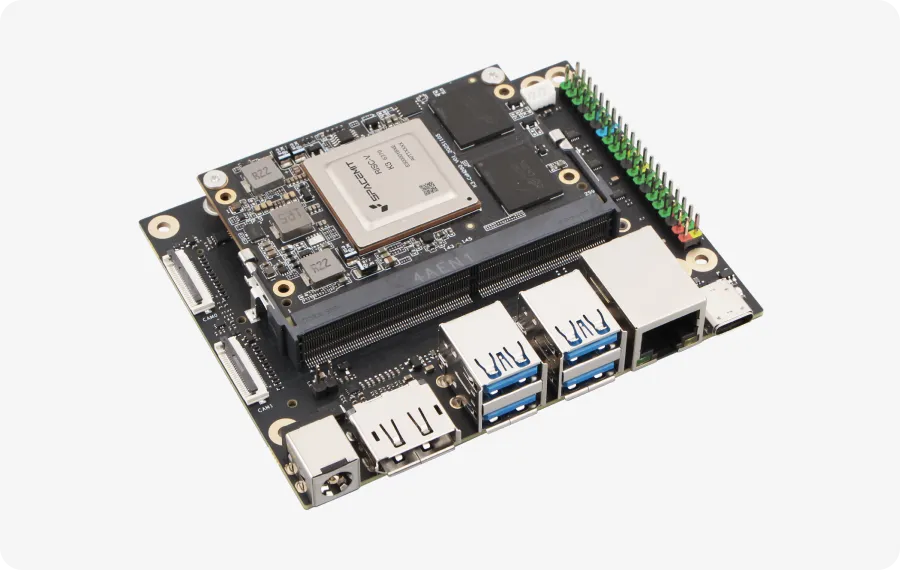

Jupiter2 dev kit
