Titan

Titan Introduction

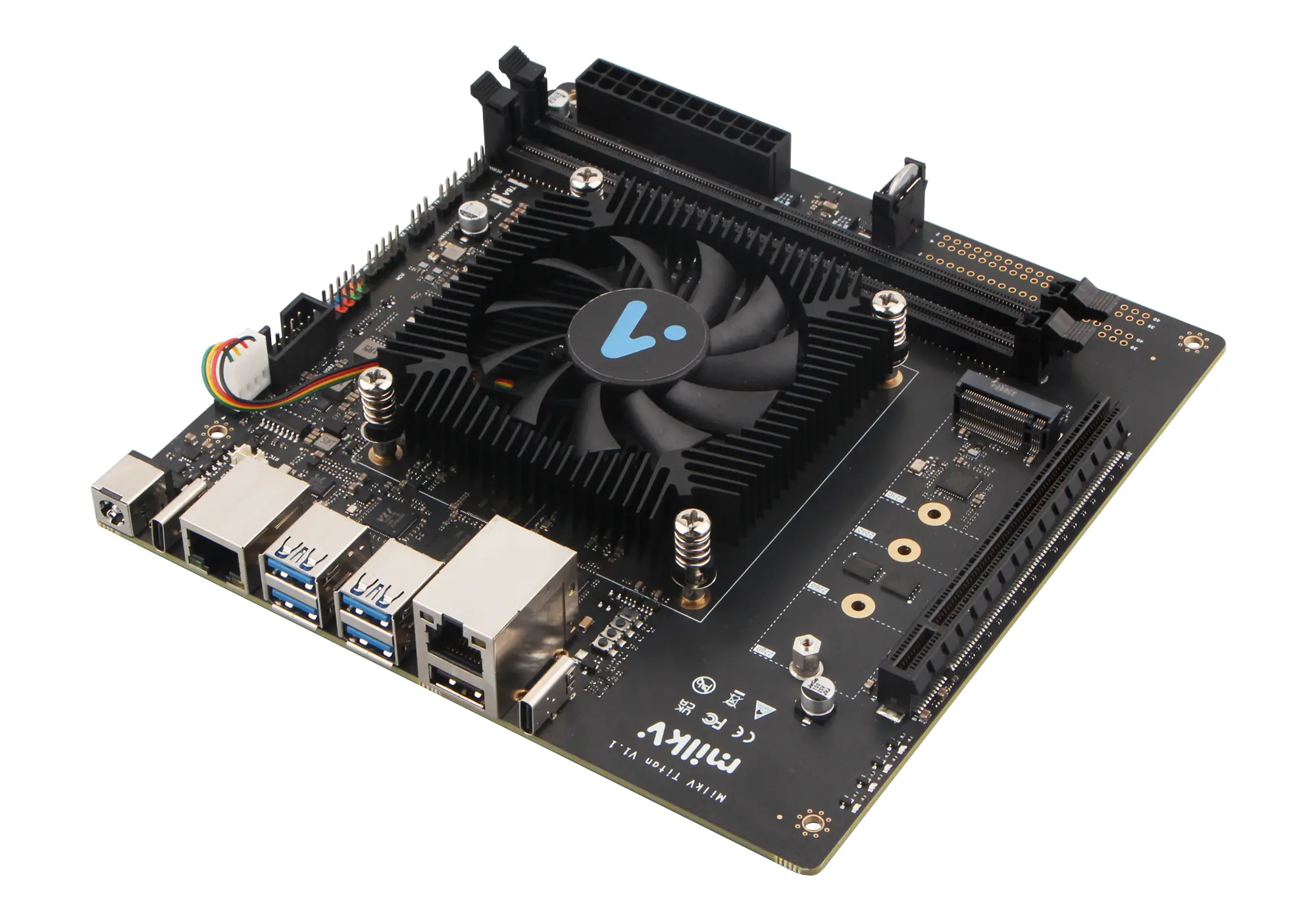

The Milk-V Titan is a high-performance RISC-V SoC Mini-ITX motherboard based on the UltraRISC Technology UR-DP1000. This platform targets high-performance desktop, edge computing, and lightweight server-grade application scenarios, providing a complete and ready-to-use hardware and software solution for the deployment of the RISC-V architecture in mainstream computing form factors.

The Milk-V Titan adopts the standard Mini-ITX form factor (170mm × 170mm), offering a complete interface configuration for high-performance computing scenarios within a compact size:

• PCIe Gen4 x16 slot, supporting discrete graphics cards, AI acceleration cards, and high-speed network cards.
• PCIe Gen4 x4 M.2 NVMe interface.
• Dual DDR4 memory slots, supporting ECC, for a total of up to 64GB @ 3200MT/s.
• Onboard BMC module, supports remote management and system monitoring
• Universal interfaces like USB 3.0 and Gigabit Ethernet, offering plug-and-play functionality under Ubuntu.
• Flexible power options, with a standard ATX power for heavy load scenarios or a DC5525 option for light use.

UR-DP1000 SoC Key Features

• Integrates eight high-performance RISC-V cores, supporting the RV64GCBH instruction set and extensions, with private 64KB+64KB L1 cache and 512KB L2 cache.
• Dual-cluster architecture, with each 4-core cluster sharing a 4MB L3 cache.
• Up to 16MB system-level shared cache (SLC), enhancing multi-core coordination efficiency.
• Full support for the RISC-V RVA22 Profile, providing a stable foundation for mainstream Linux distributions.
• First post-silicon RISC-V core to support RISC-V’s Hypervisor Extension 1.0.
